Portable GPU Model 28180

• Peak Current: 4500A
• Max continuous amps: 800A30S 400A400S
• Nominal voltage: DC 28.5V
• Max voltage: DC 30.5V
• Amp/hour capacity: 180Ah@2hr rate(20°C)
• Operating temperature: -20°C to +60°C(-4°F to +140°F)
• Case: Aluminum, superficial static electricity spurts
• Aircraft cable: 2m (6ft) with NATO connector
• Input voltage: 90-240VAC 50/60HZ
• Input current: 25A
• Dimensions: H482L457W139mm(H19”L18”W5.5”in)
• Weight: 35.9kgs(79lbs)

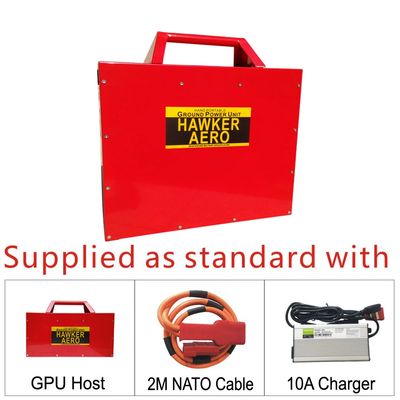

• Supplied with unit: Charger, Aircraft cable

The all-new Hawker Aero GPU utilizes the latest technology in Lithium iron phosphate batteries.

These batteries provide the same power as the lead-acid type but are 60 percent lighter and 30 percent smaller.
These LFP batteries have twice the battery life of lead-acid batteries.
The modular design allows two GPUs to be paralleled to double the continuous output and battery capacity.
This unit is designed for engine starting only.
Batteries have no memory effect and can be recharged at anytime.

• Airbus H120/125/130/135/145/155/175/215/225, AS332/AS532/SA330, BO105, SA315/316/318/319/341/342/360/365
• ATR42/72, Antonov An2, Agusta Westland AW119/109/EH101, Enstrom F280/F480
• Bell 505/525/206/407/427/429/412/212/214/CH135/CH136/CH139/OH-55/OH-58/UH-1
• Beechcraft King Air/100/200/300/350/B200/C90/E90/F90, Queen Air 80/88
• Beechcraft 850XP/SNB/T-34/Duke 60/18/1900/2000/AT-7/AT-11/C-6/C-12/C-43/C-45/CT-145
• Cessna 172/182/206/208/335, Citation 500/Citation CJ1/Citation Encore/Citation 550/Citation 560/Citation CJ2/Citation CJ3/Citation 650/Citation VI/Citation VII/Citation X/Citation XLS
• DeHavilland DHC-2/DHC-4/DHC-6, MD500/520/530/600N/902, Pacific P-750 XSTOL, KODIAK100
• Sikorsky S58/SH60/UH60/S61/S62/S70/S76/S76A/S76B/S76C/S76C+/S76C++/S92
• SOCATA TBM700/TBM850, MI171, Kamov ka32, Boeing 737APU, EMBRAER EMB120, and more.
• It Cannot be used for Agusta Westland AW139, Sikorsky S-76D, Pilatus pc6, Pilatus pc12.
